Max. Pressure 70 ~ 100 Bar ( 1,000 ~ 1,500 PSI )
Max. Flow Rate 30 ~ 53 LPM ( 8 ~ 14 GPM )
Coolant Type Water or Oil
Reservoir Capacity 200 L ~ 600 L ( 55 ~ 165 G )

■ Features :

Output-pressure monitoring system :
Output-pressure monitoring system protects system and machine from excess pressure.
Automatic filter replacement detection :
Large capacity dual-filter system with automatic filter replacement detection to reduce down time.
Large capacity coolant reservoirs :
200 L large capacity coolant reservoirs help maintain constant coolant supply and regulate heat buildup.
( Optional 400 L / 600 L )
7" full-color touch screen :
7" full-color touch screen interface control simplifies operation.
Made in USA patented diaphragm pumps :
Made in USA patented diaphragm pumps for durability and performance.
Electronic level-switch / pressure switches :
German made non-contact electronic level-switch and ceramic electronic pressure switches for reliability and durability.

SMART INVERTER ( OPT. )

■ Ethernet fast connection

The smart inverter HPC system can be controlled by only one Ethernet cable.
No need to change PLC from NC. Plug and Play. Fast connection and convenient.

■ Automatic Variable Pressure Control ( AVP Control )

  • Easy Control Use NC program to control output pressure
    Automatic pressure change and do not need to adjust regulating valve manually. Simply key in the required pressure value on the machine and the output coolant will auto adjust itself. Within the system capacity, any pressure can be selected for each tool no matter quantity or diameter of the tools.

  • Constant Pressure   Maintain stable pressure in different diameter of tools

w/ AVP control

Small Port -
Pressure stable and concentrate



Big Port -
Pressure stable and concentrate

w/o AVP control

Small Port -
Pressure stable and concentrate



Big Port -
Inadequate pressure and unable
to concentrate


  • Energy Saving Save 40% electric power in average
    AVP Control can precisely control motor speed by required pressure output and provide suitable flow. Compare to full flow output under manual system, it greatly reduce power consumption.

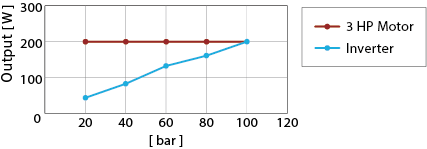

    Power Consumption


  • Extended Pump Life   Buffer motor speed to protect pump

CENTRIFUGAL FILTER UNIT ( OPT. )

■ 0 Industrial Waste

No waste disposal of filter element

■ 0 Service required

Easy to change filters

■ 0 Cost for maintenance

Cost reduction, no need to buy filter

  • Effectively Filtering more than 1.5 proportion dust chip 10µm 98%

  • Visible chip collector. Chip disposal while machine is running.

  • Three stages centrifugal filtration technology without power required for energy saving.

Material SS400
Flow Rate 60 L/min
Liquid Viscosity Under 2.5 cP

■ Specifications

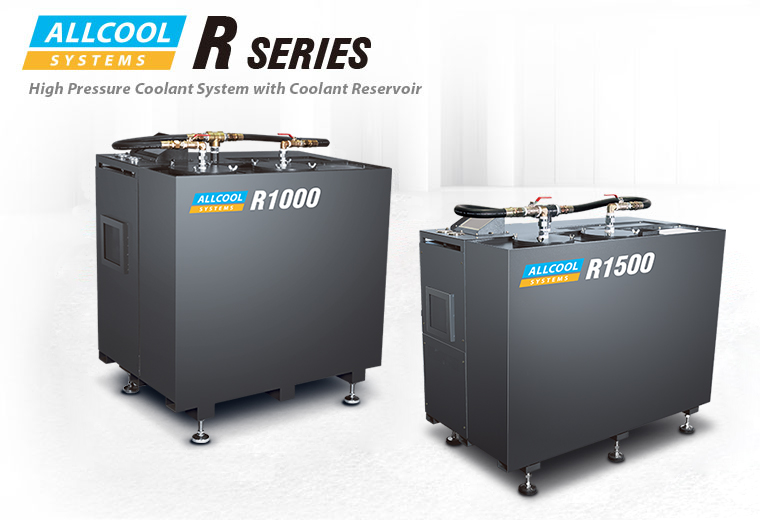

Models R 1000 R 1500
Coolant Type Water / Oil
Max. Pressure 70 Bar ( 1,000 PSI ) 100 Bar ( 1,500 PSI )
Max. Flow Rate 30 LPM ( 8 GPM ) 53 LPM ( 14 GPM )
Pressure Adjustment Manual or AVP Control
High Pressure Pump Diaphragm Pump
High Pressure Motor 5.5 kW ( 7.5 HP ) 15 kW ( 20 HP )
Feed Pump Motor Con. 0.75 kW ( 1 HP )
Reservoir Capacity 200 L ( 55 G )*1
Filtration System Dual High-Capacity Filter Units with 5µ Disposable Filter Bags ( opt. centrifugal filter unit )
Filter Replacement Detection Yes
Number of Ports 1 Std. ( Opt. 2, 4, 8 ports )
Control 7" Touch-Screen w/ PLC ( opt. control by Ethernet or IO control )
Voltage, Frequency 3 Phase 220 V ( ±10 % ) , 60 Hz
Rated Current 30 A 75 A
Dimensions L x W x H 120 x 90 x 130 cm 170 x 100 x 135 cm

*1 Optional 400 L / 600 L coolant reservoirs

Specifications are subject to change without notice.

Smart Inverter ( Ethernet + AVP control )
